Introduction

In this article, we are going to cover an API gateway service – API Gateway is a server that acts as an intermediary or ‘gateway’ for requests from clients seeking access to services, typically in a microservices architecture. It is a critical component that sits between external clients and internal services, providing various functionalities to manage, secure, and route traffic efficiently.

It plays a pivotal role in enabling scalable and maintainable microservices architectures by serving as the single point of entry for all client interactions with backend services.

If you would like to follow a video tutorial please use our youtube video.

Prerequisites

• AWS account.
• AWS account with Amazon API Gateway, Route53, and ACM Full Access, IAM user with full permissions.

Request ACM certificate

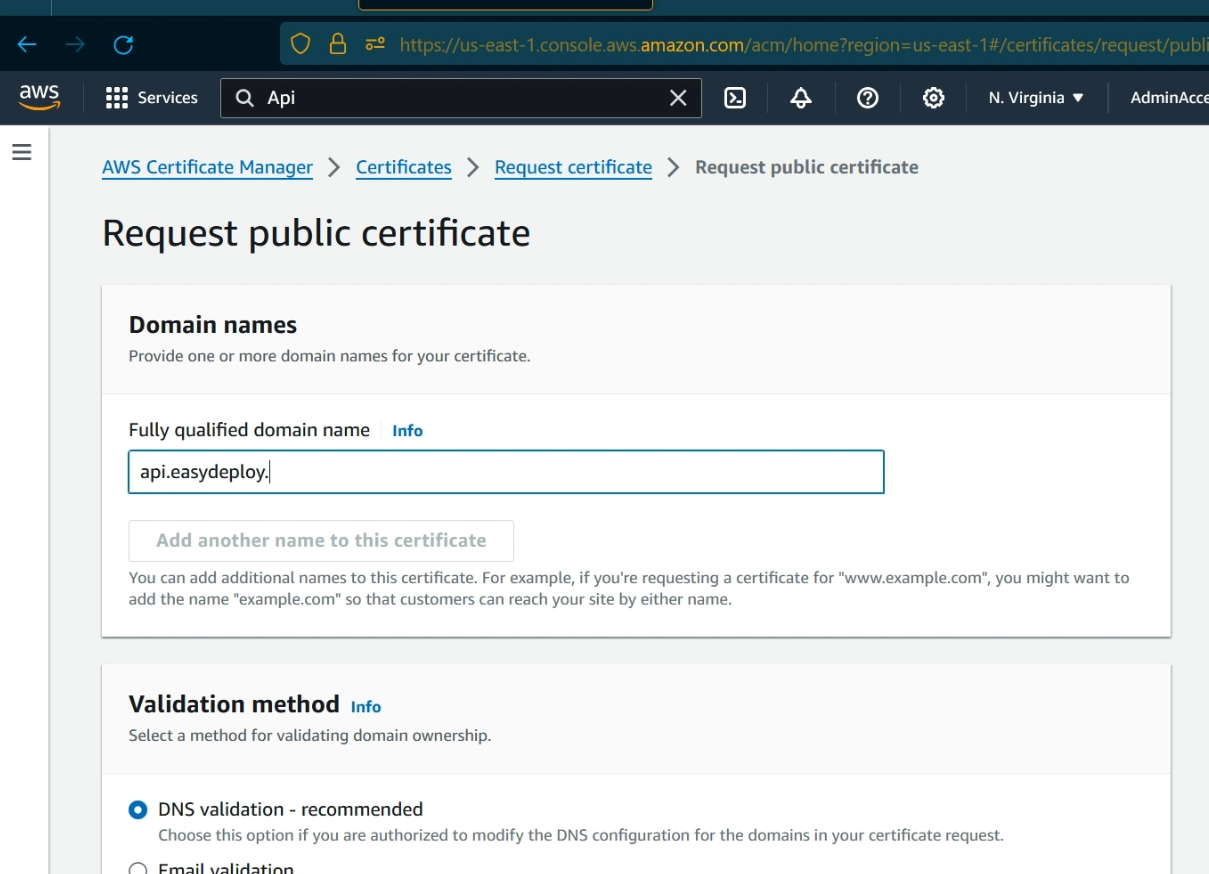

Go to ACM service ,select > request certificate and choose > request a public certificate and click > next

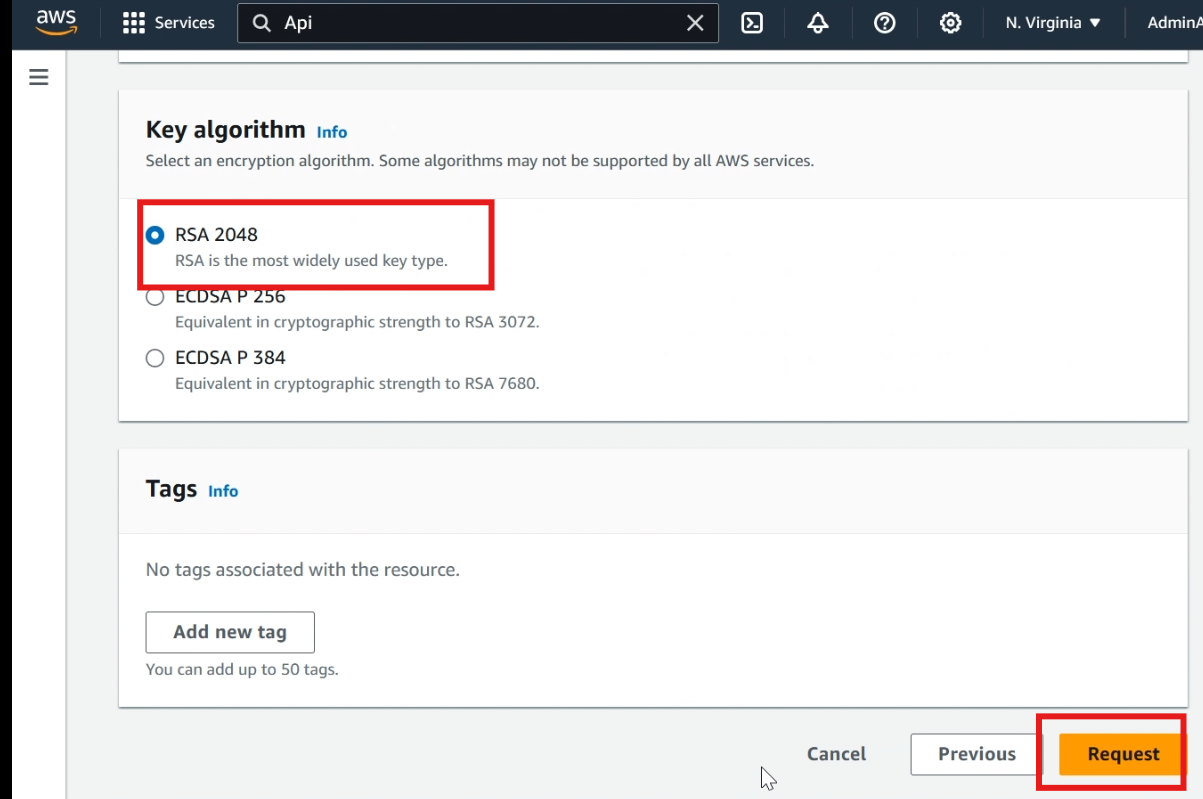

Type > your domain name, choose > DNS validation, and choose RSA 2048, and click > request, It takes a few minutes to validate the certificate.

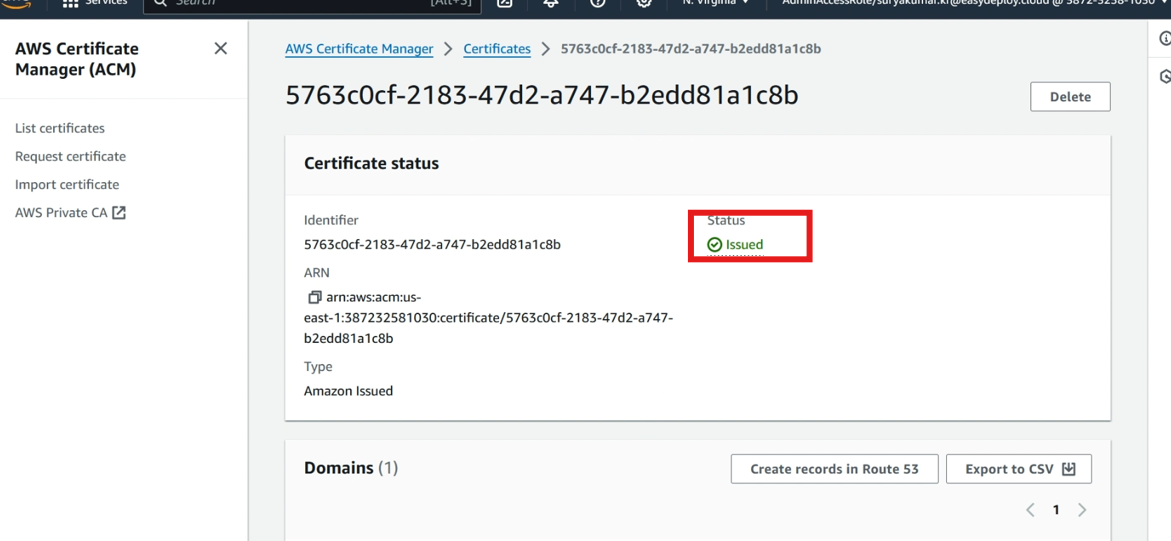

Now the certificate was issued.

Create API gateway

We want to create two API gateway > go to API gateway service.

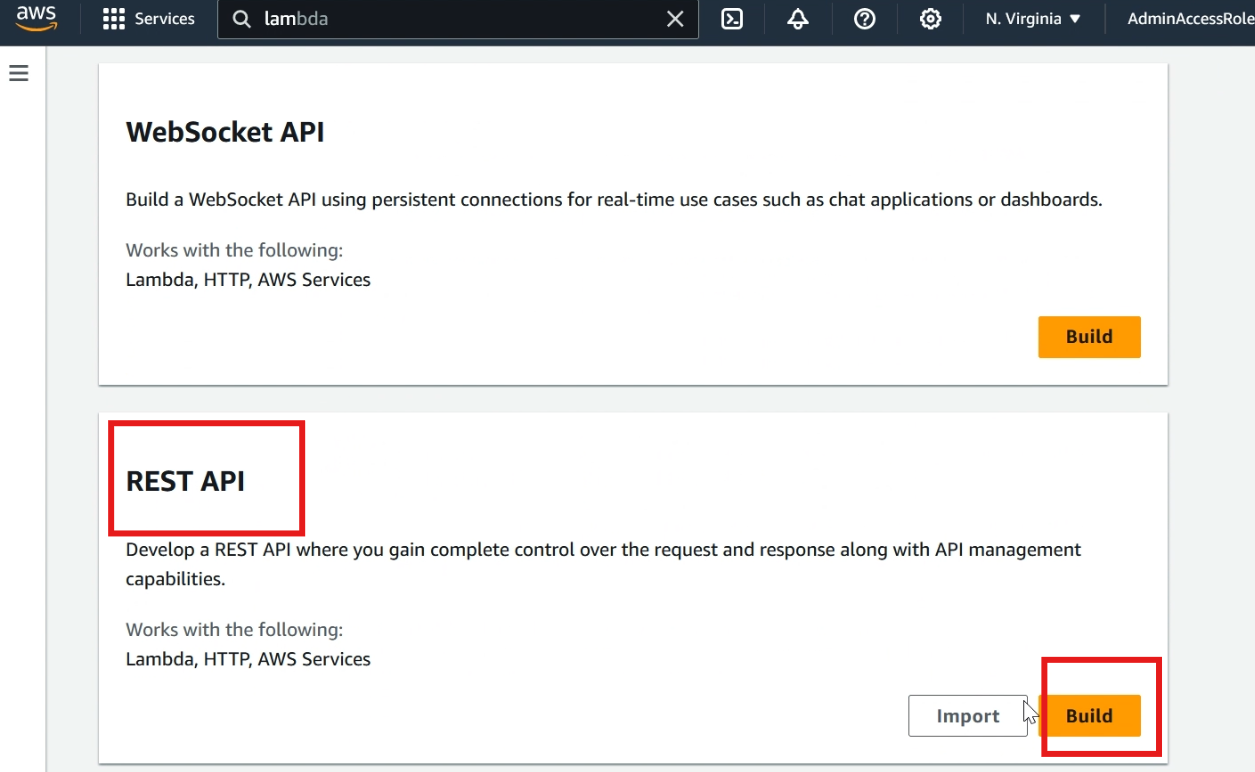

I am choosing rest API to build

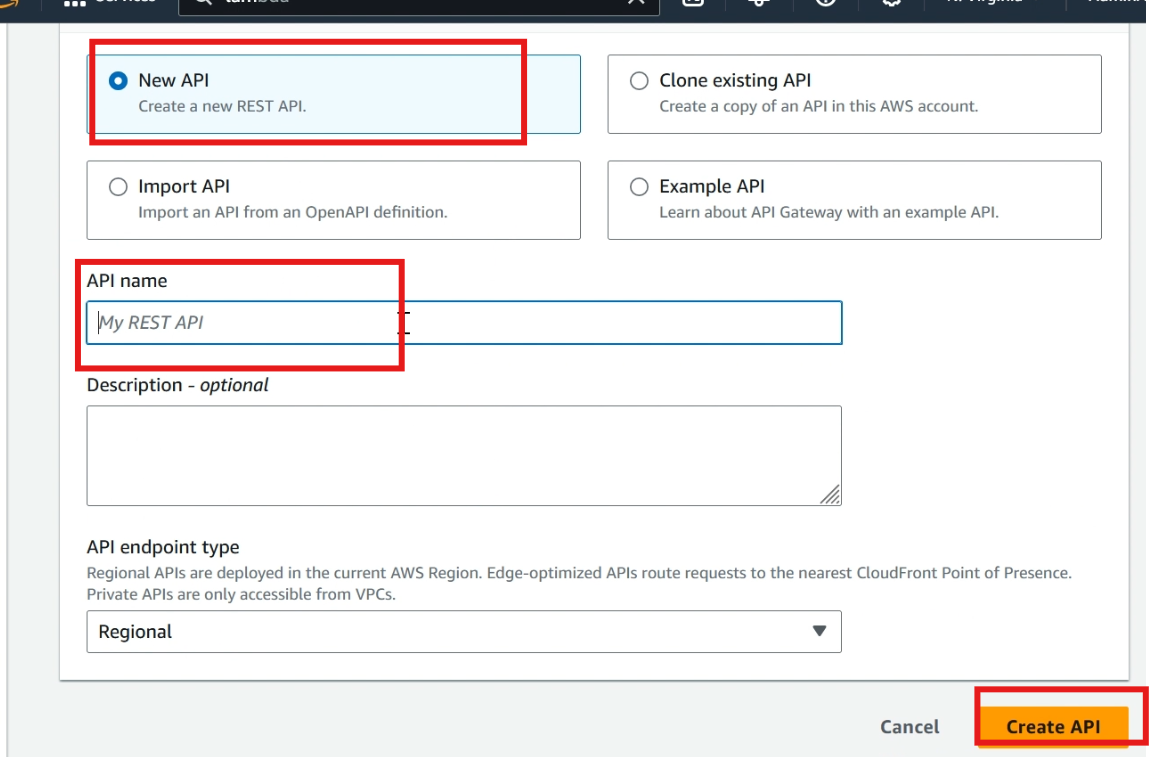

Choose >> new APi, type >> API name, and click >> create API

Now we created the first API gateway. now we want to create another API gateway. do the same process again.

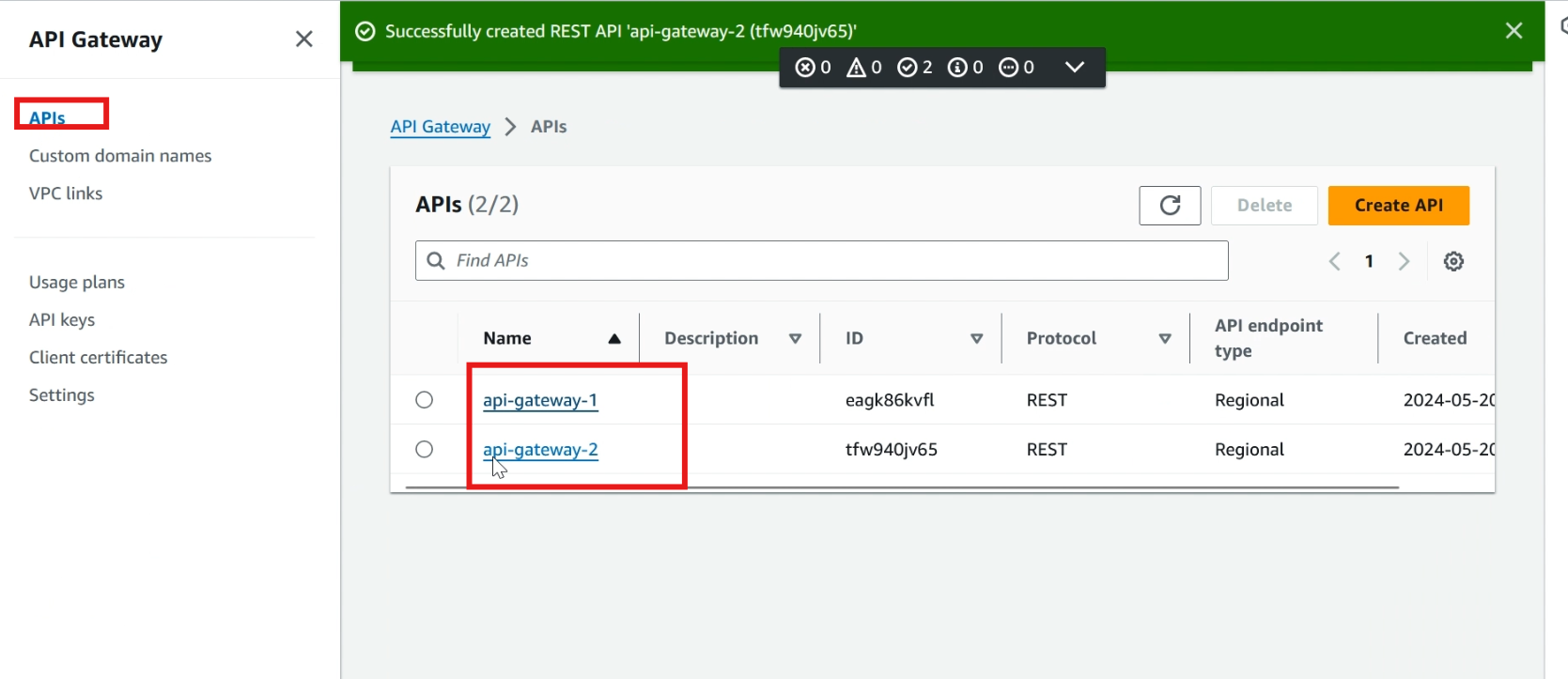

Now we successfully created two API gateways.

Create Lambda function

Now we need to create two lambda functions one is for API gateway one, and another one is for API gateway 2

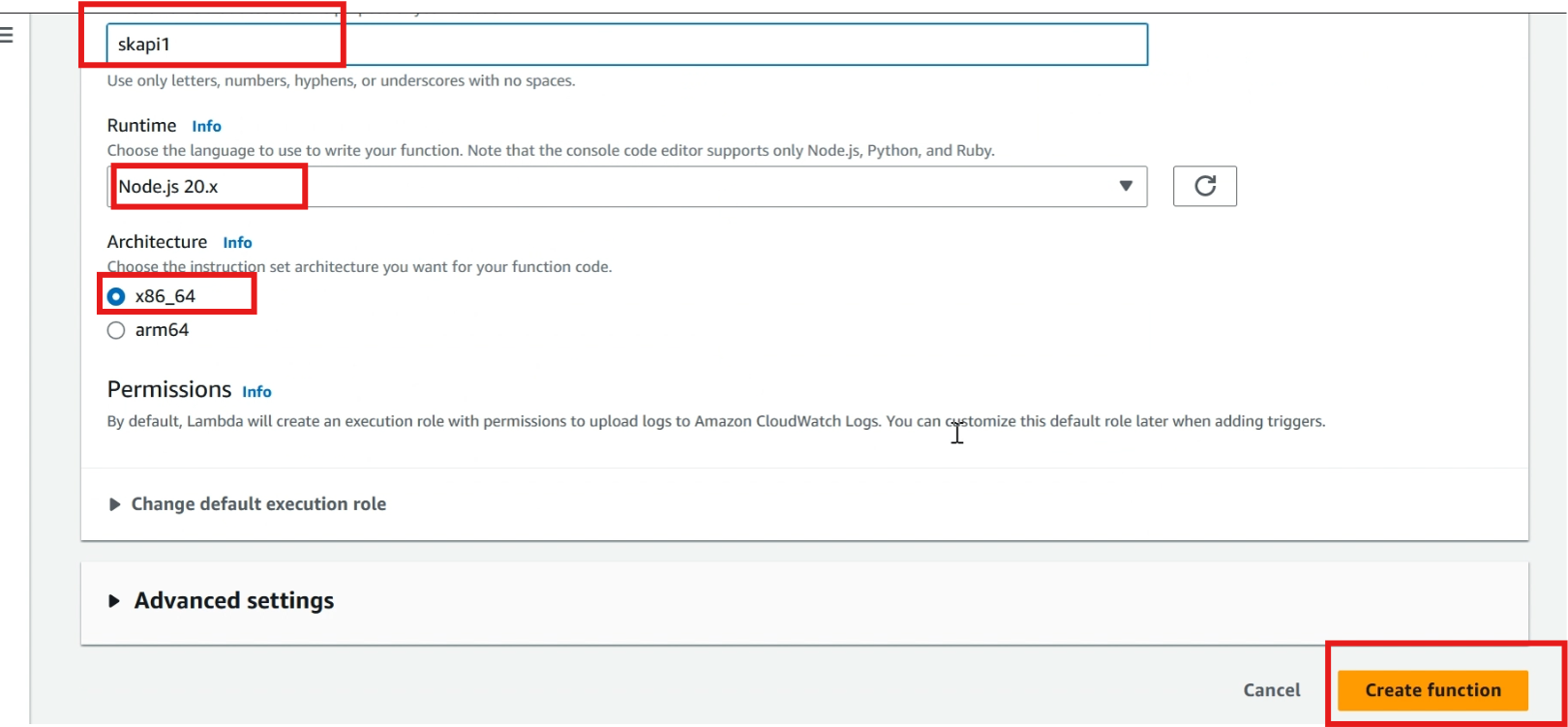

Go to lambda service > create function > type a name, I am giving “skapi1” and I am choosing node js and click create function.

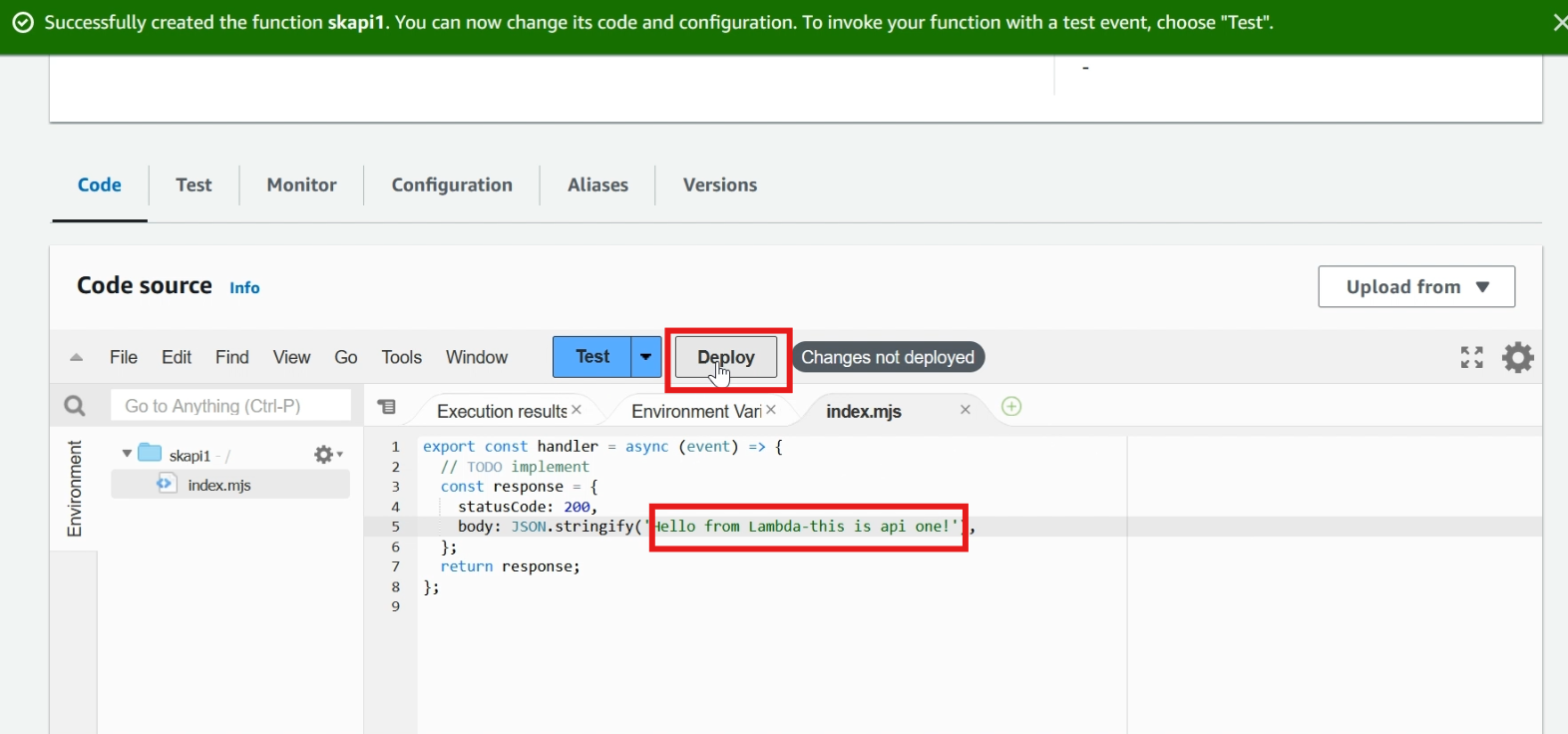

I am changing some content in the message, click > deploy and type > event name, click > save

Do the same process and create another lambda function.

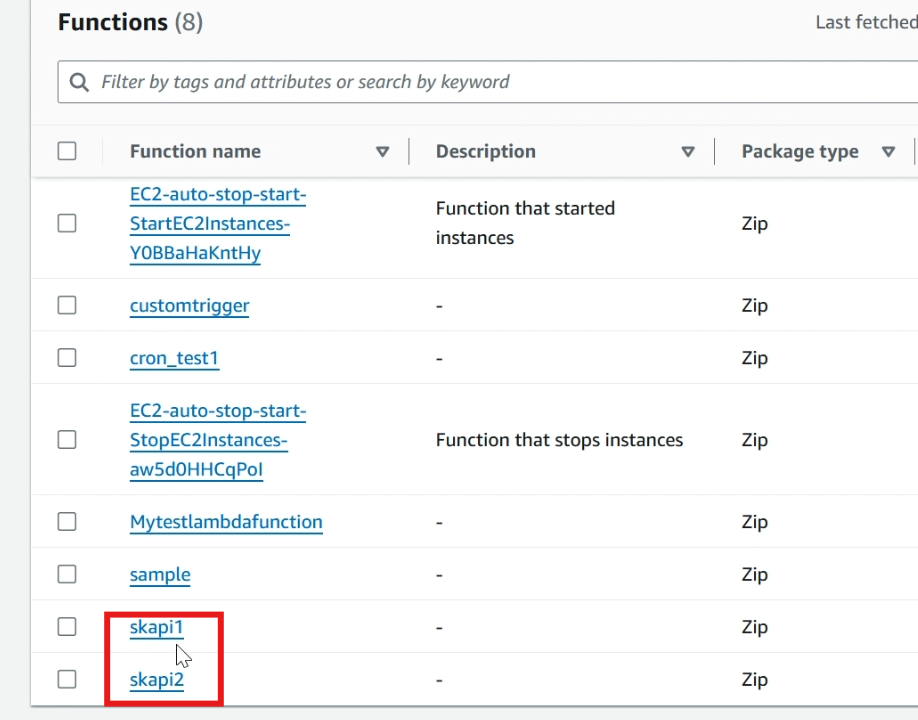

Now we created two lambda functions, I am given the names “skapi1” and “skapi2”

Create custom domain name

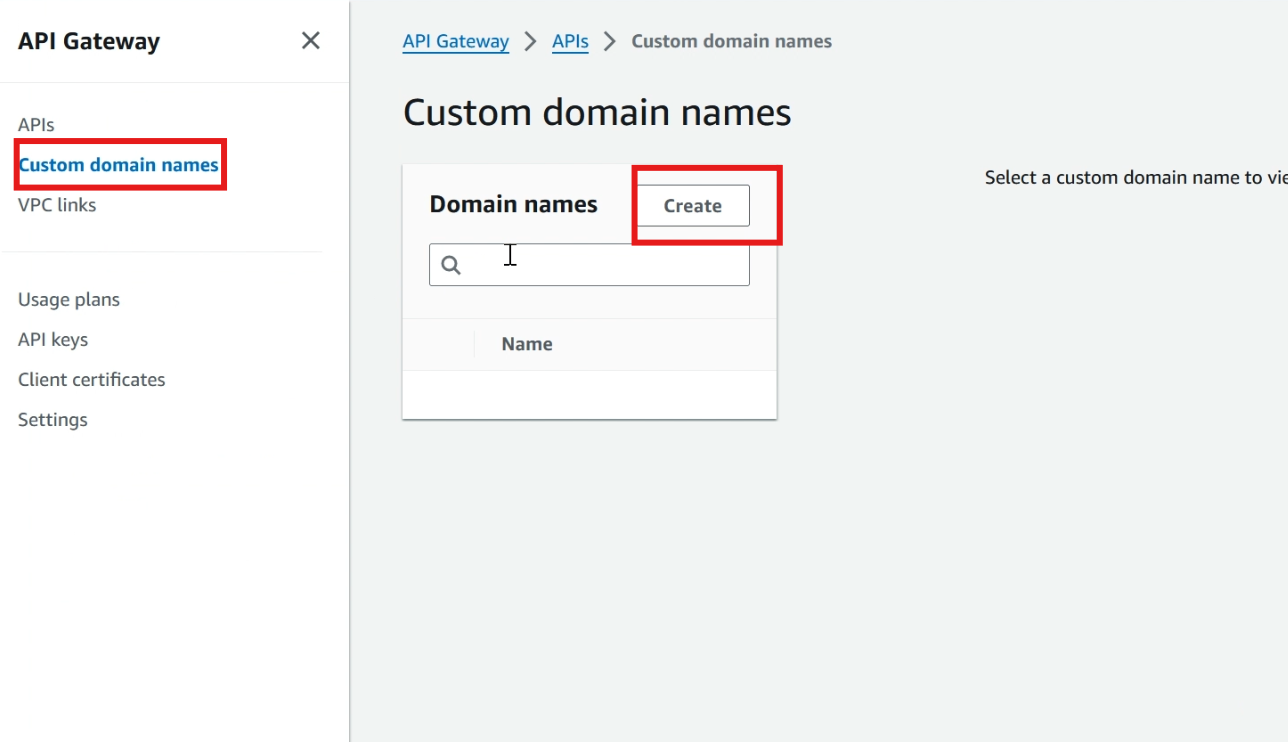

Go to  API gateway service, click custom domain names, and click >> create

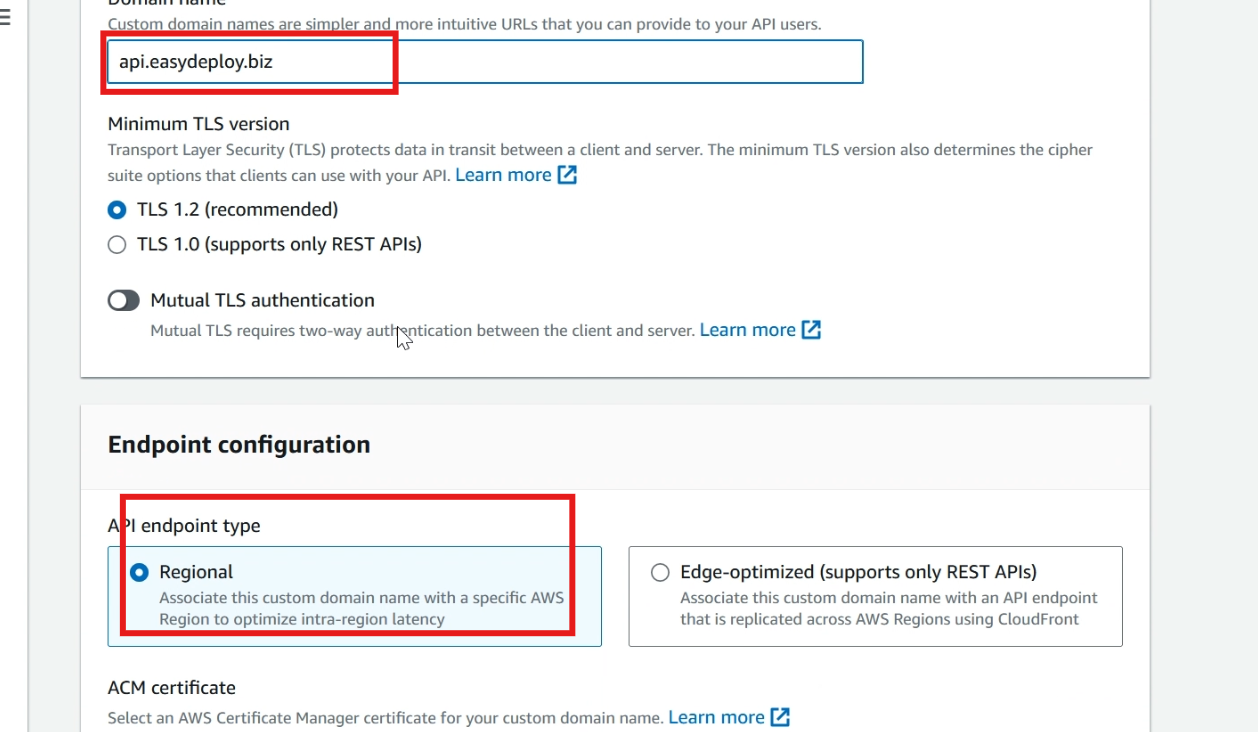

Type your >> domain name

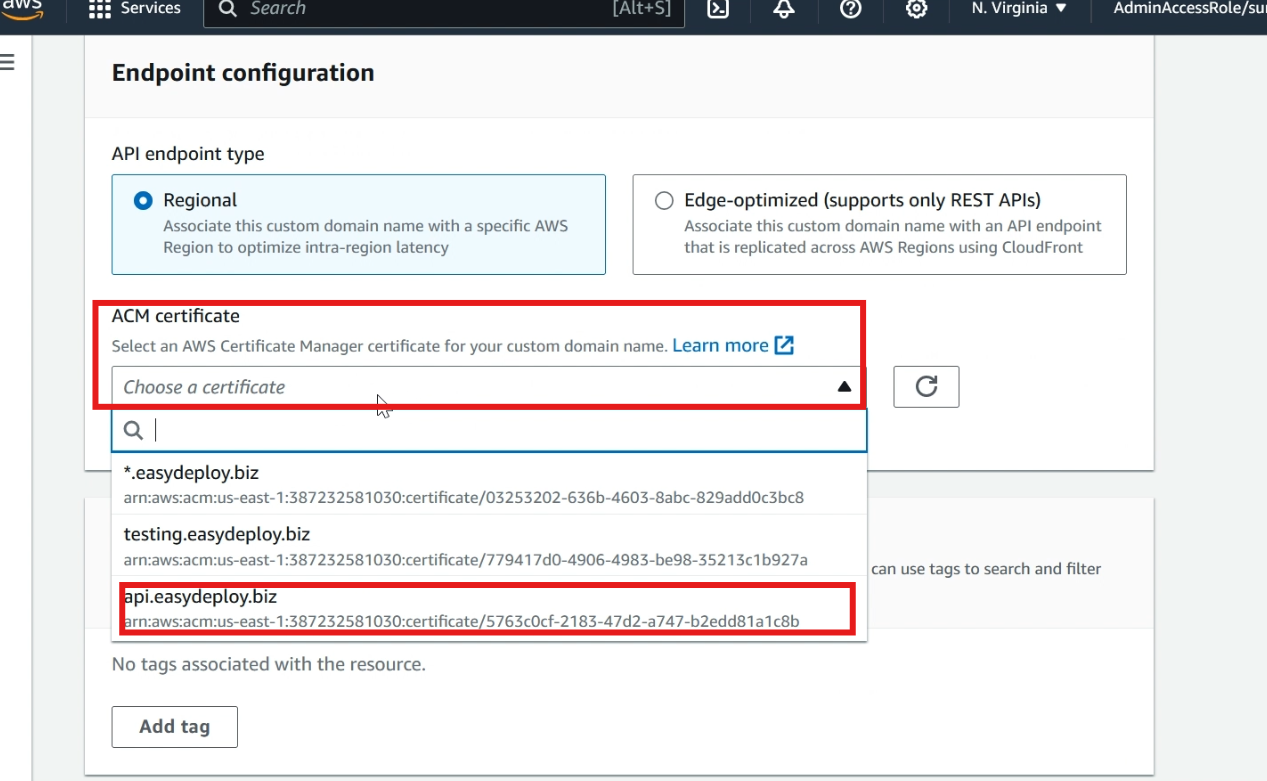

Choose your issued ACM certificate, and click >> create domain name

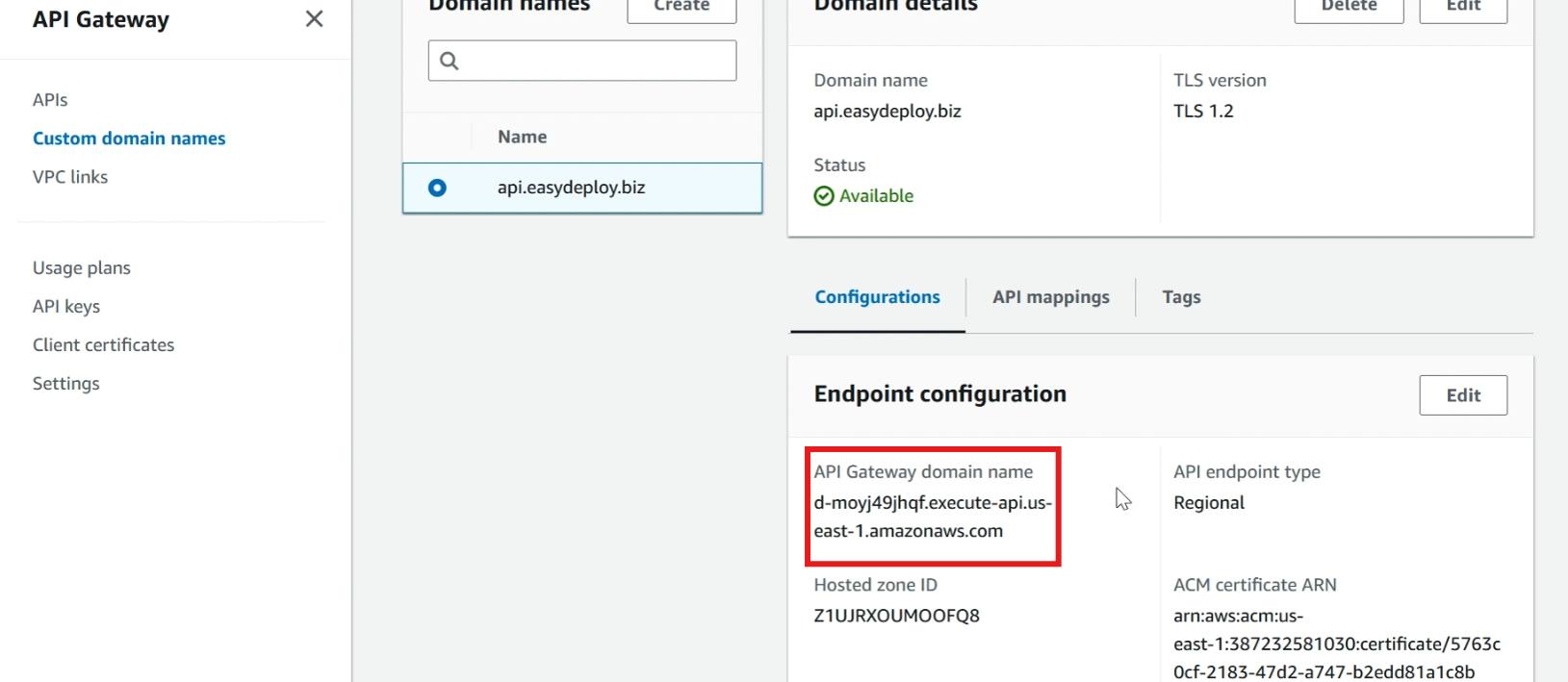

After creating the domain name it assigns an endpoint, copy the endpoint

Create a record in route 53

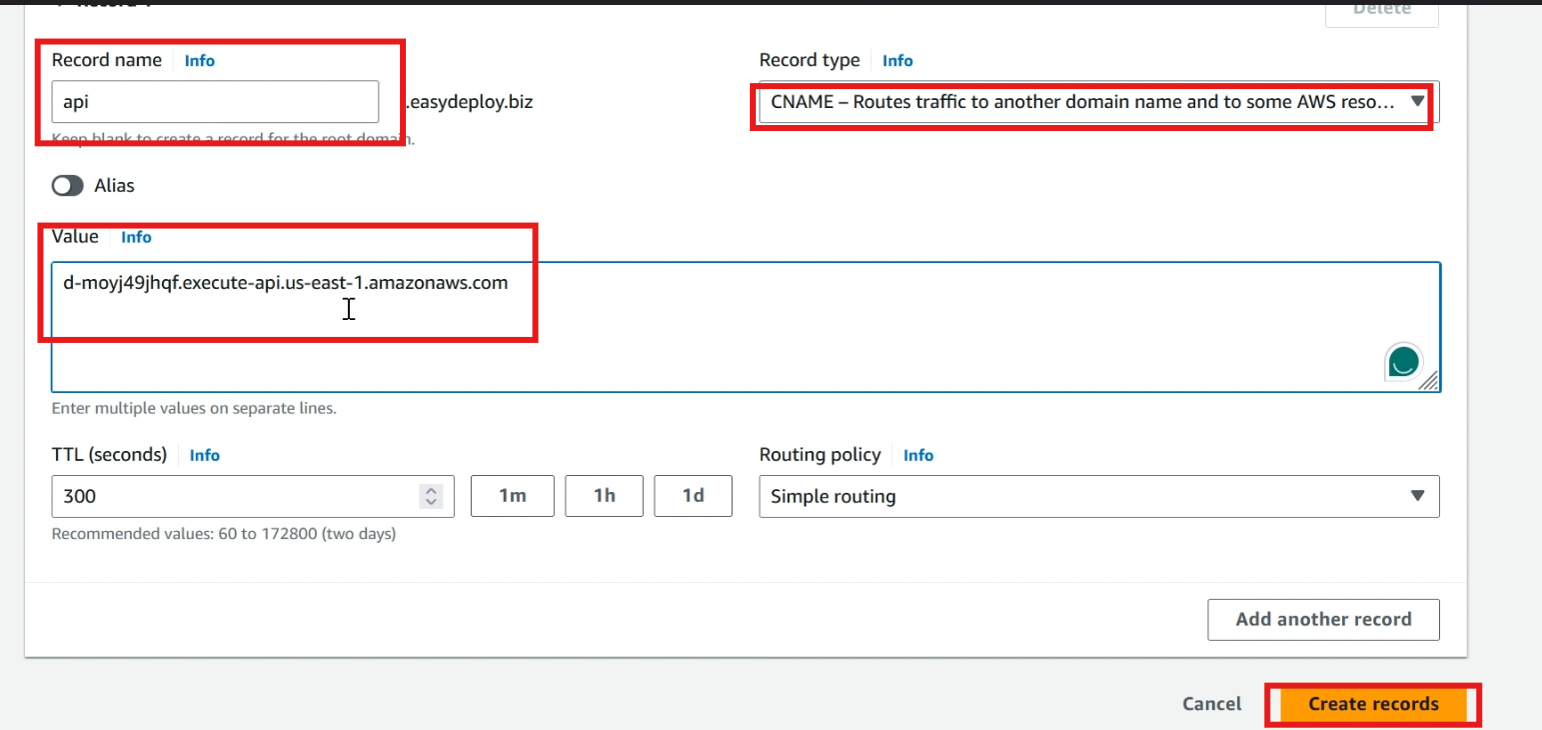

Go to route 53 service, click >> create record, type >> your domain name, choose >> CNAME in the record type, paste the copied endpoint in the value, and click >> create records

Integrate lambda with API gateways

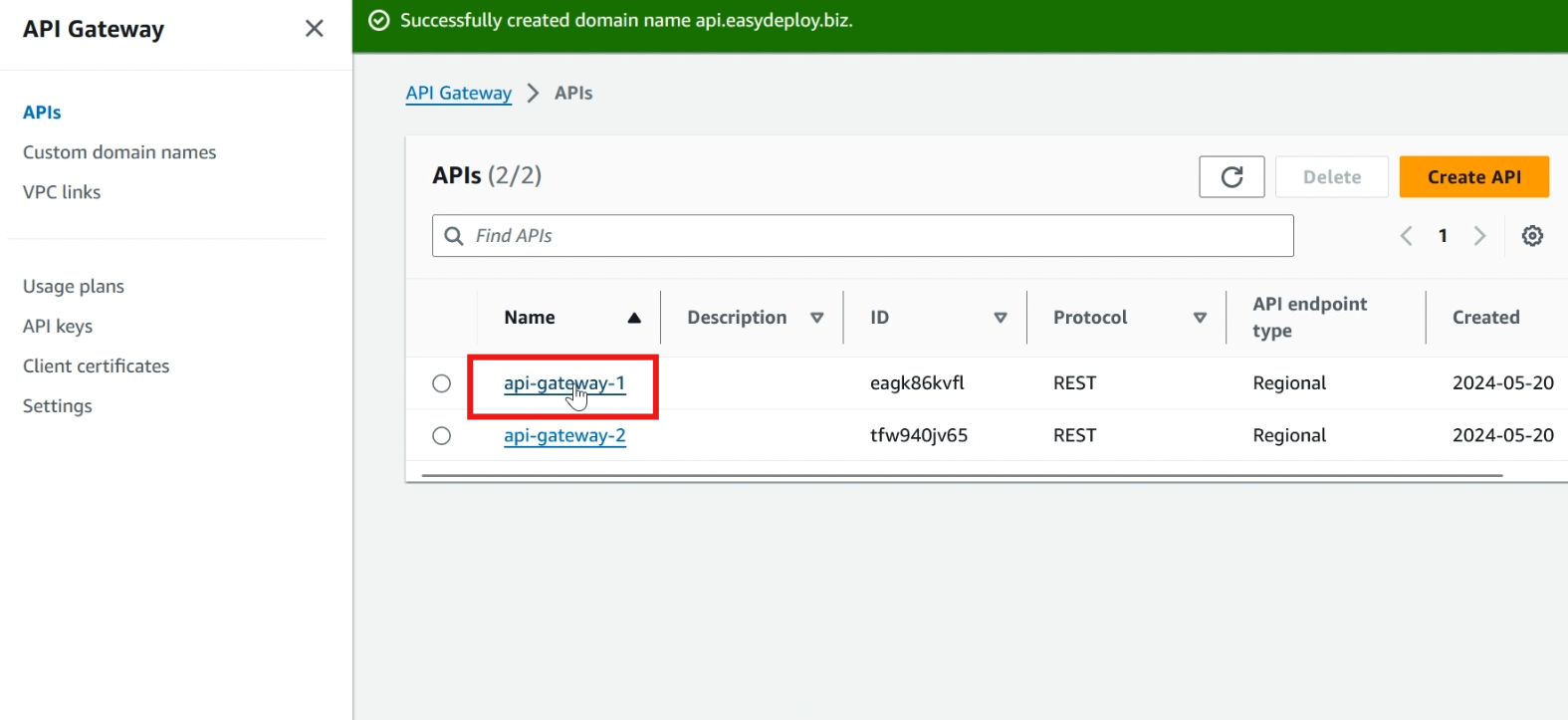

Go to API gateway service, click your >> first API gateway

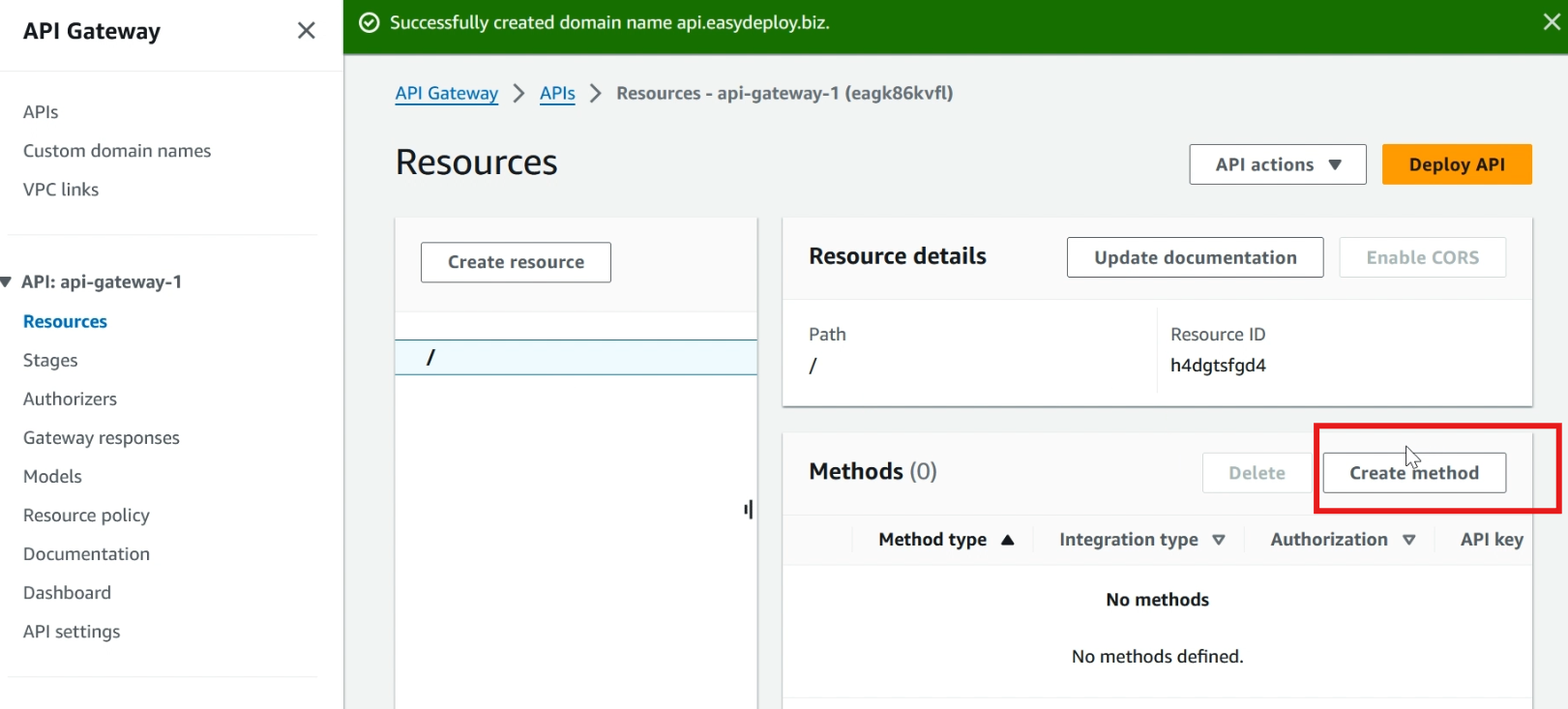

Click >> create method

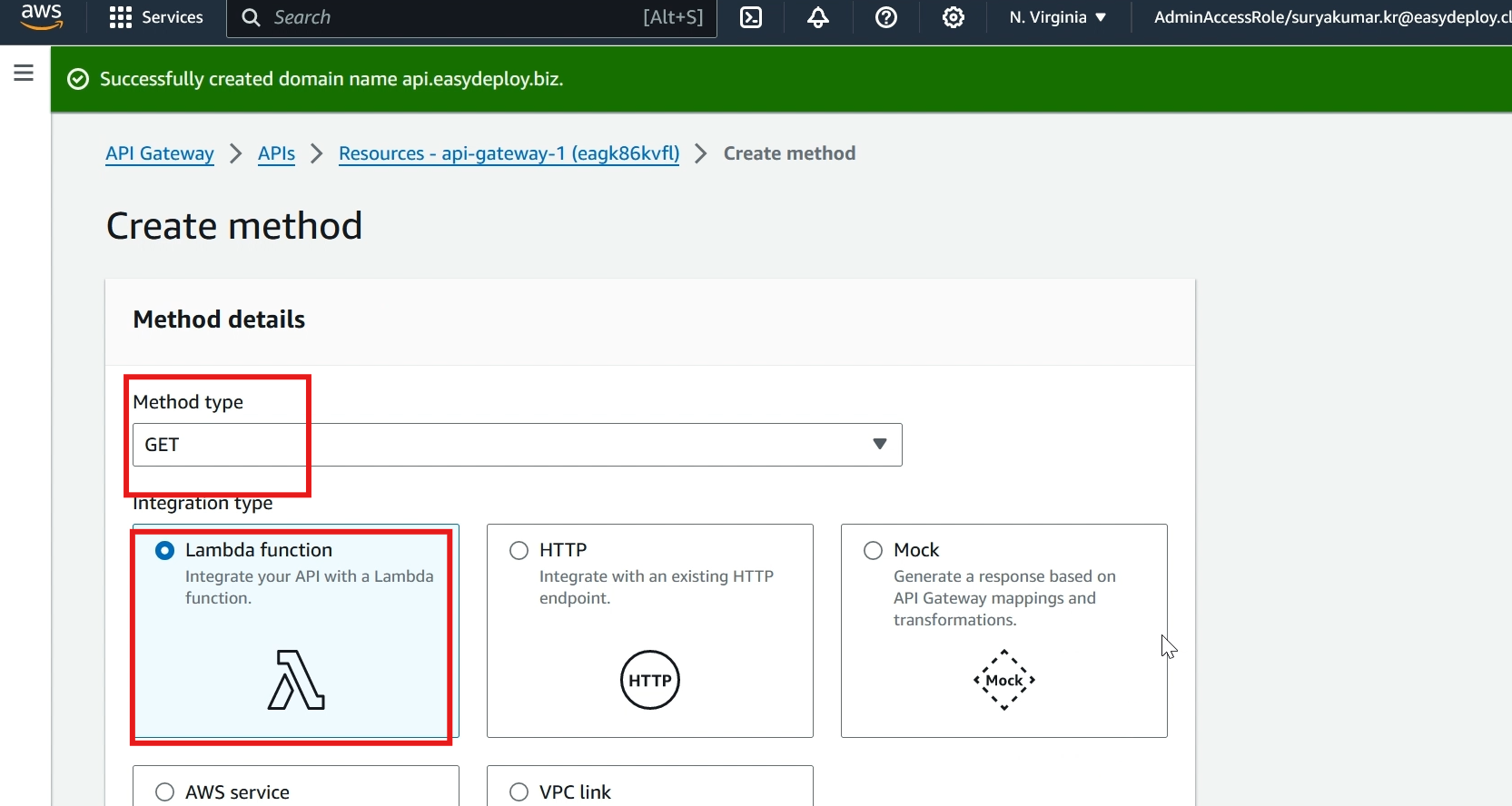

In the method type choose >> GET, and choose >> lambda in the integration type

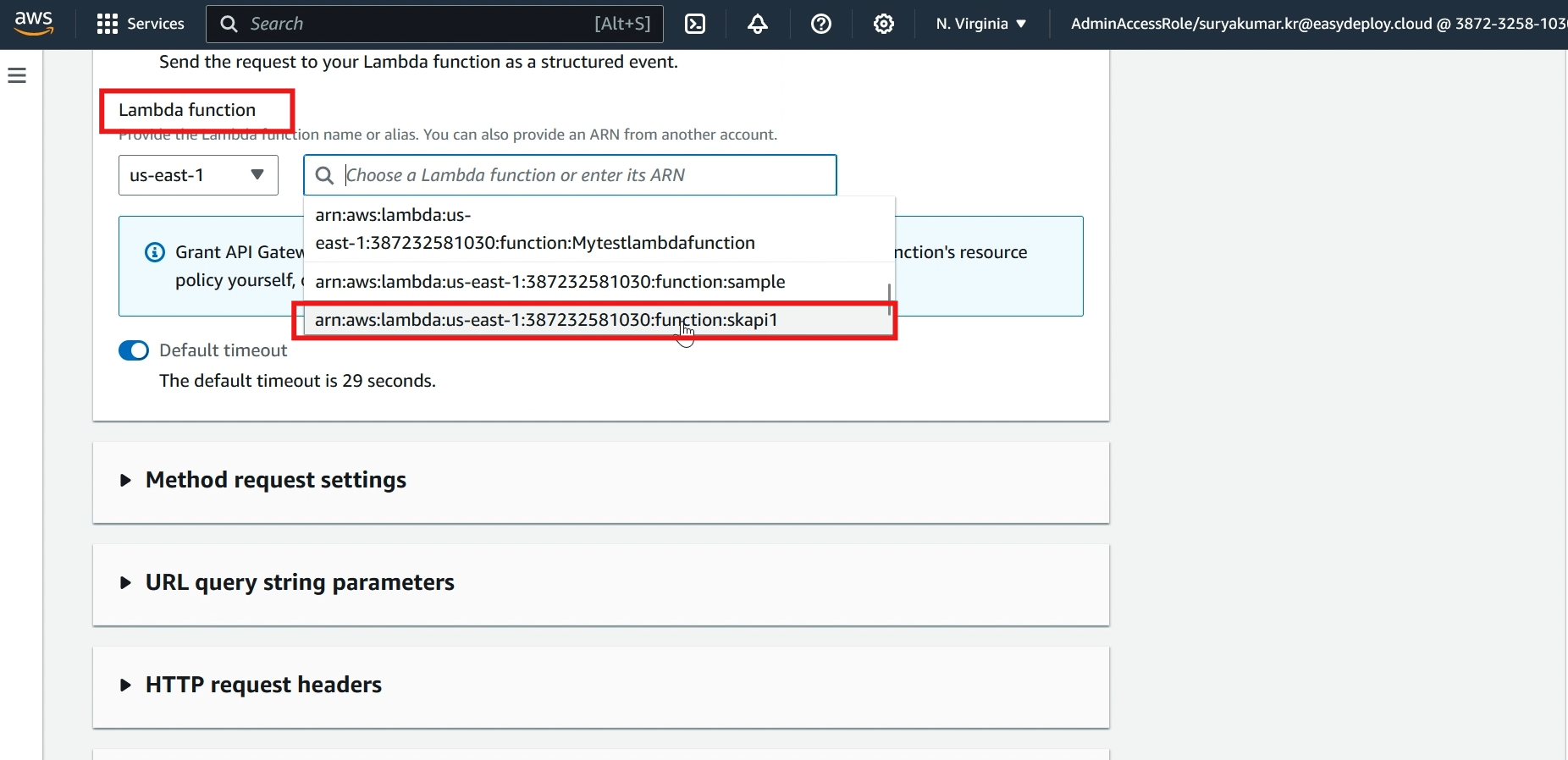

In the lambda function choose your >> first created lambda function (skapi1), and click >> create method

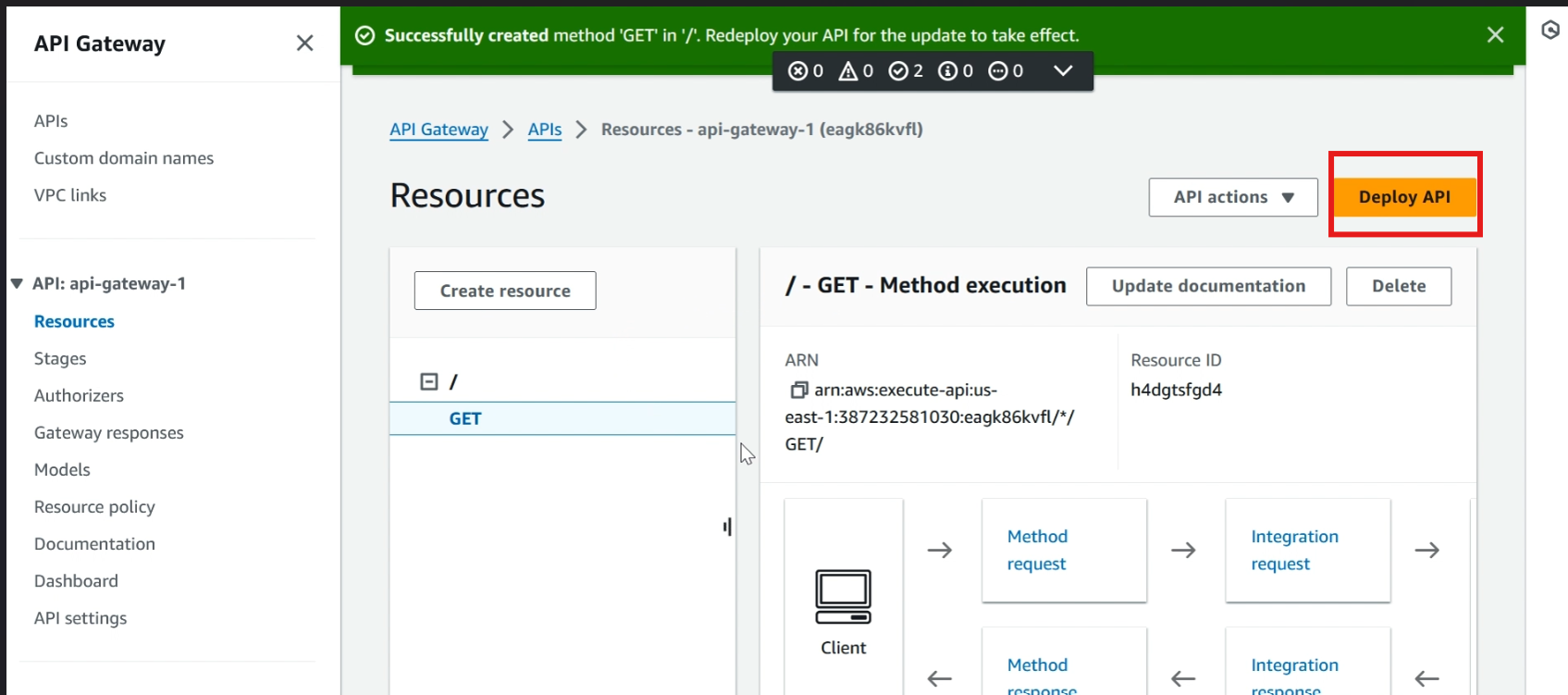

Now we integrated the lambda function in the first API gateway, click >> deploy API

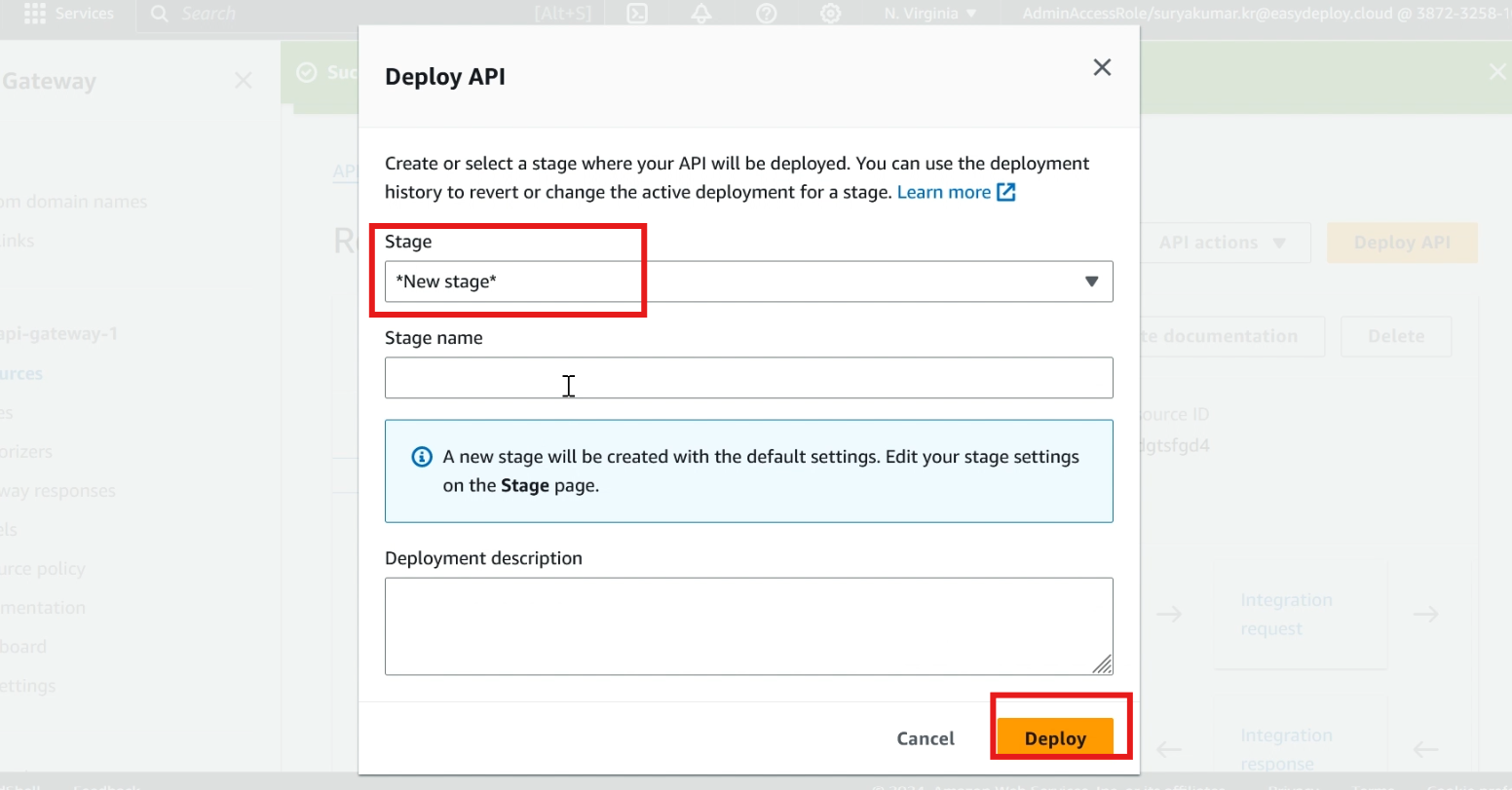

In stage, click >> new stage, give a >> stage name, and click deploy

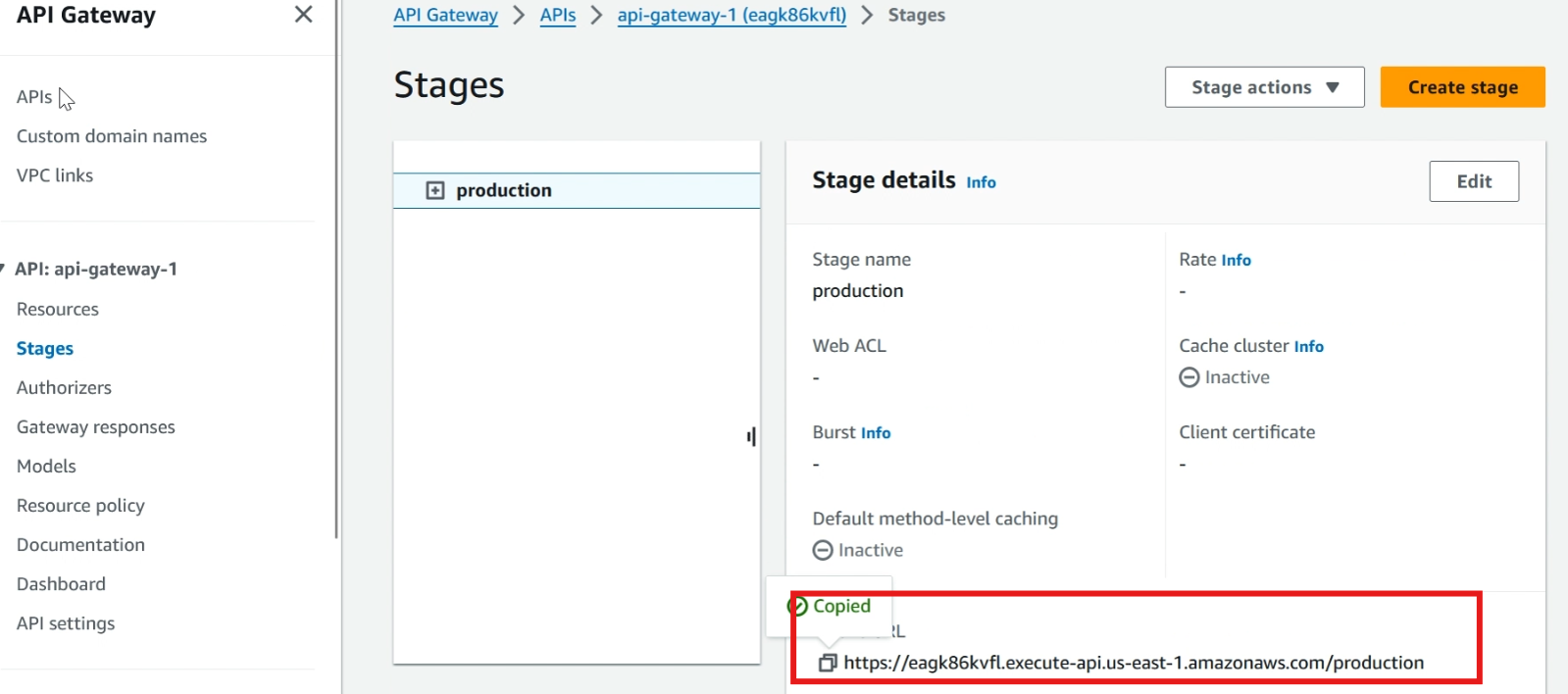

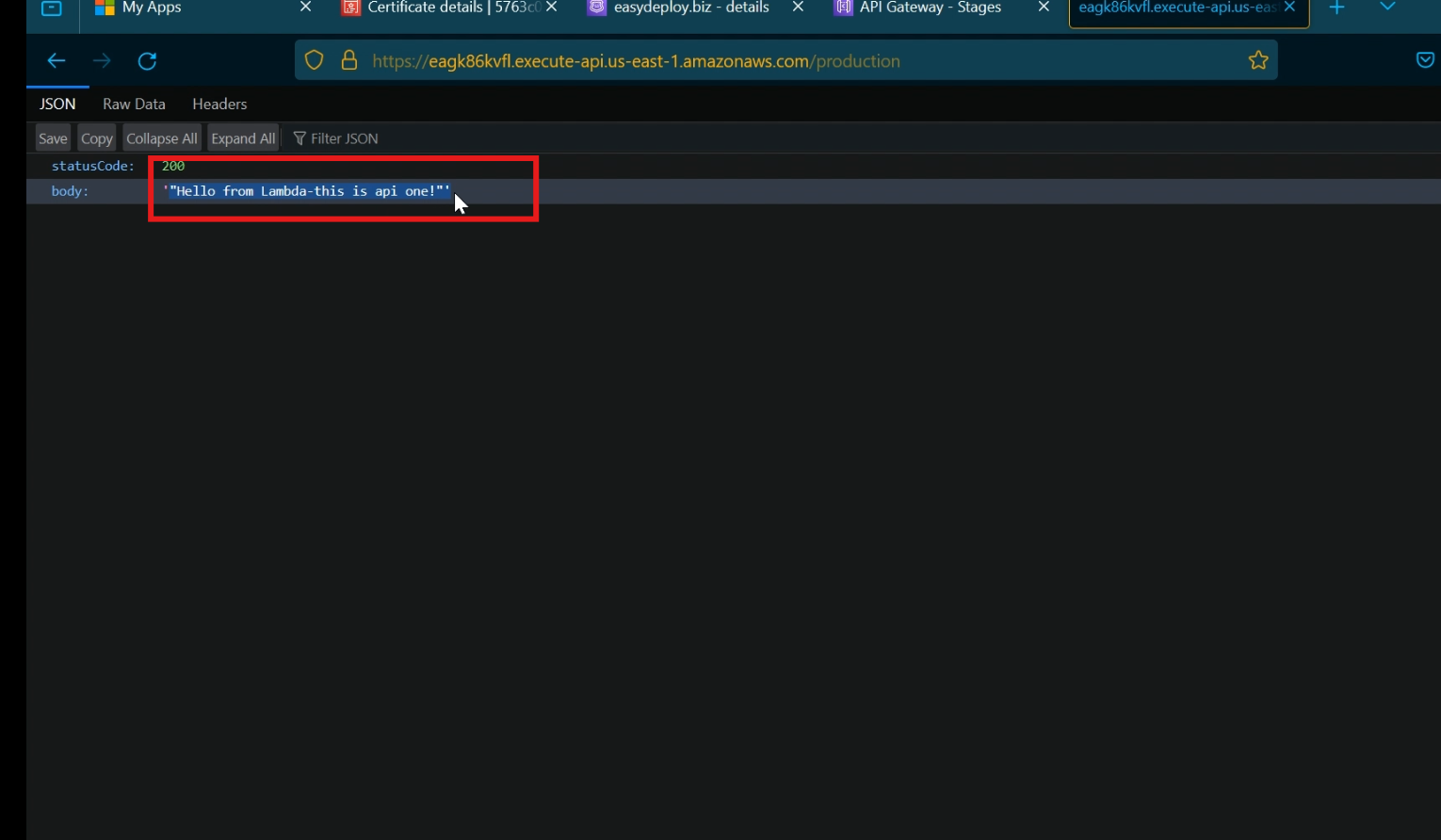

Now we successfully deployed, copy the invoke URL, and paste it to check

It shows the message that we created in the lambda function

Now we successfully integrated the lambda function into the first API gateway, now we want to do the same process for the second API gateway.

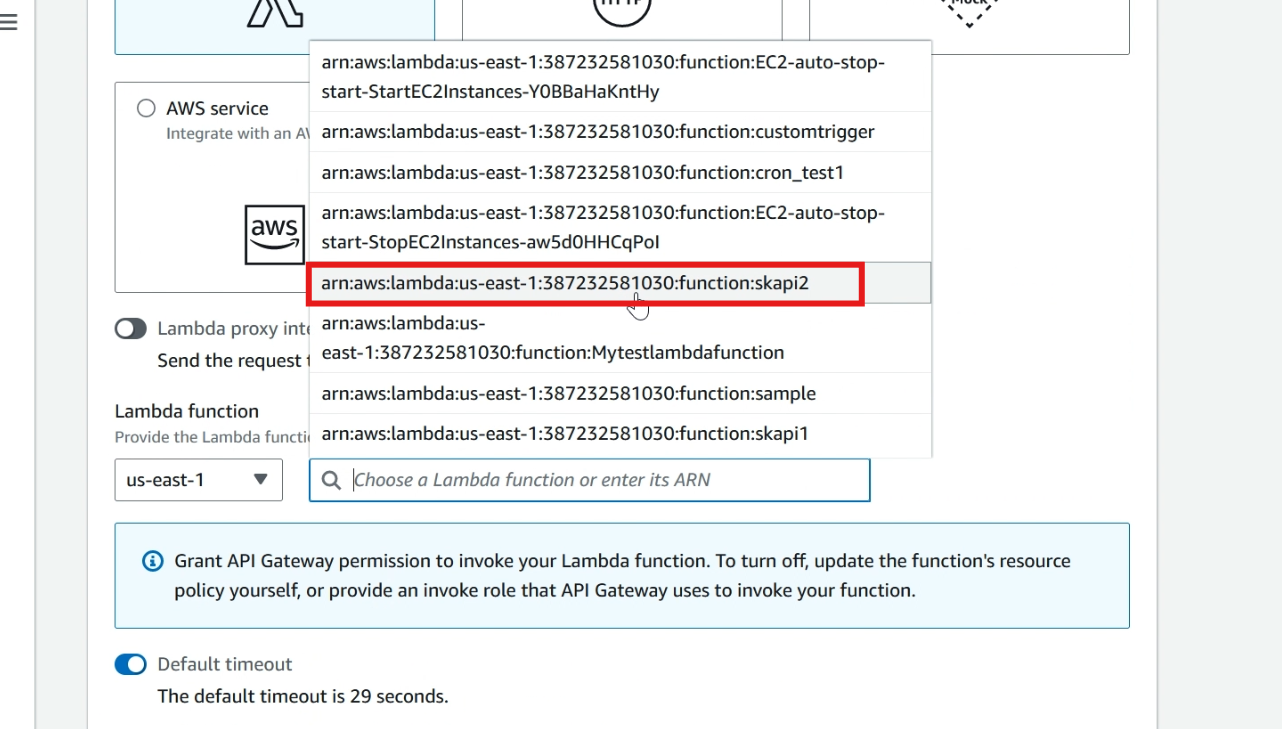

but choose the lambda function that we created second (skapi2)

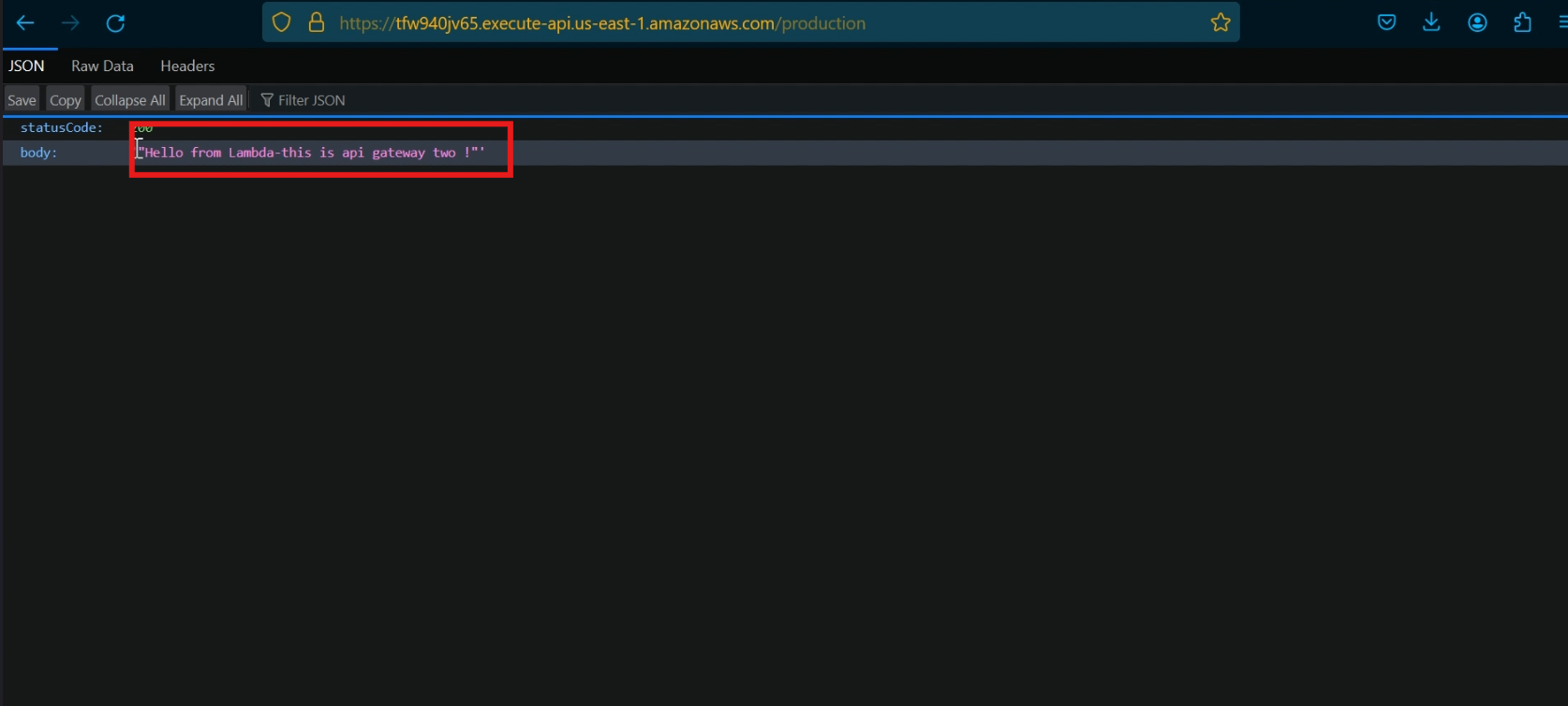

After doing all the setups, copy the invoke URL and paste it to check.

It shows the message that we created in the second lambda function

Configure api mappings

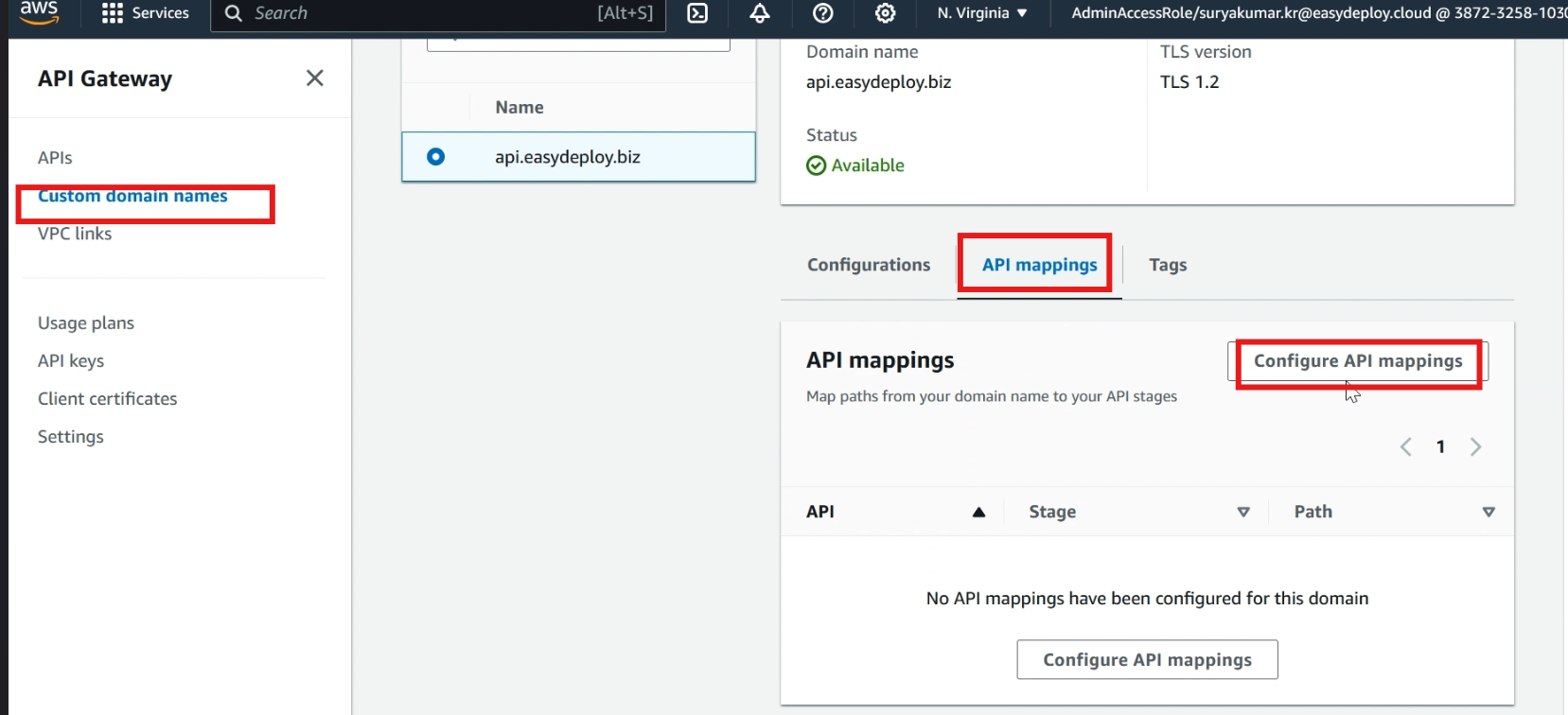

Click >> custom domain names, choose >> API mappings, click >> configure API mappings

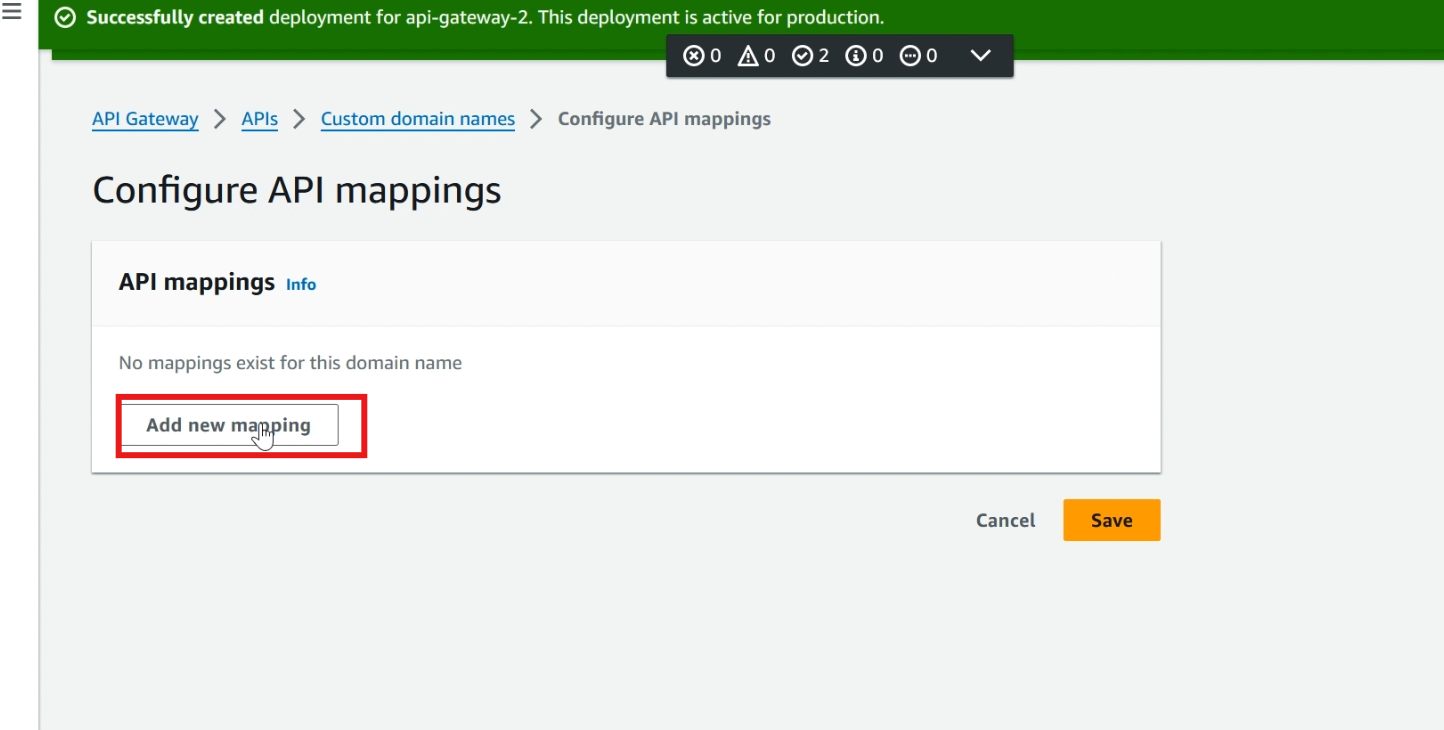

Click >> add  new mapping

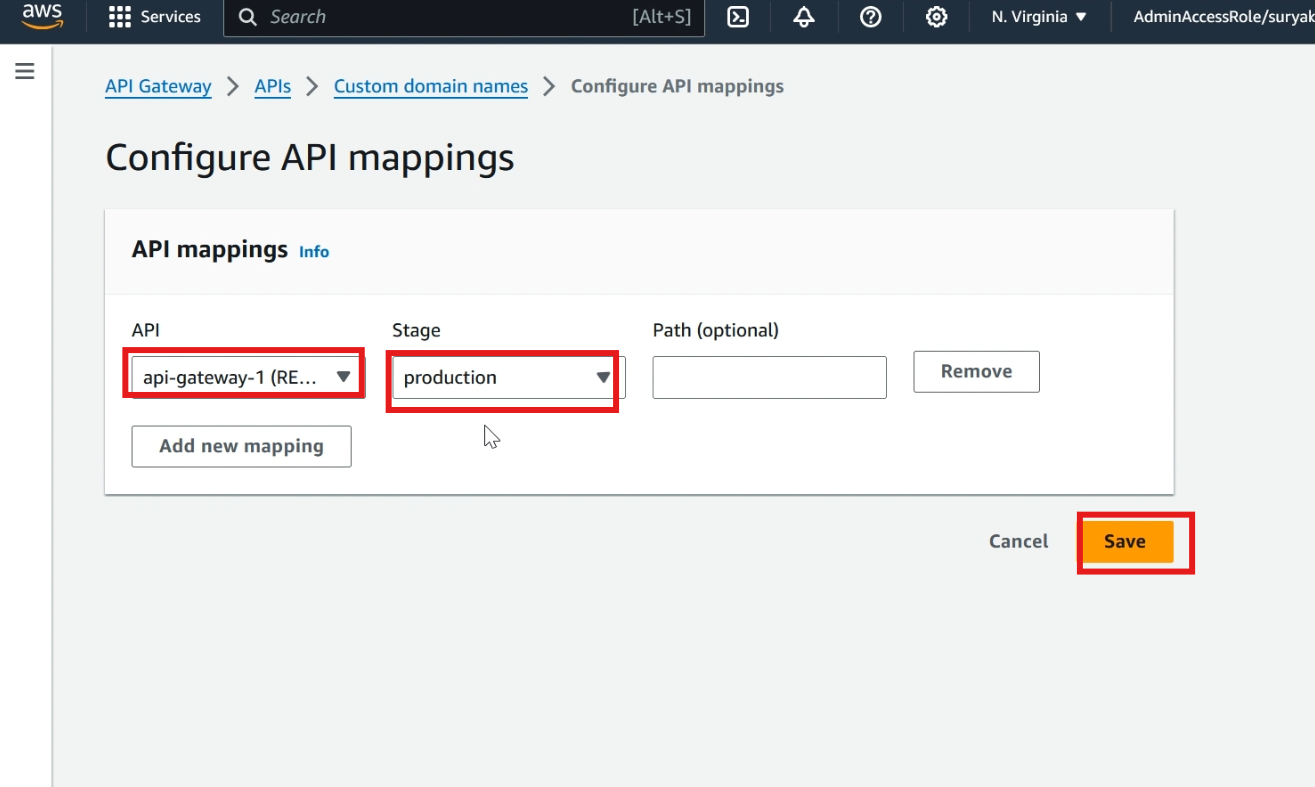

In api >> choose API gateway1, in stage >> choose your created stage

Now click again >> add new mapping

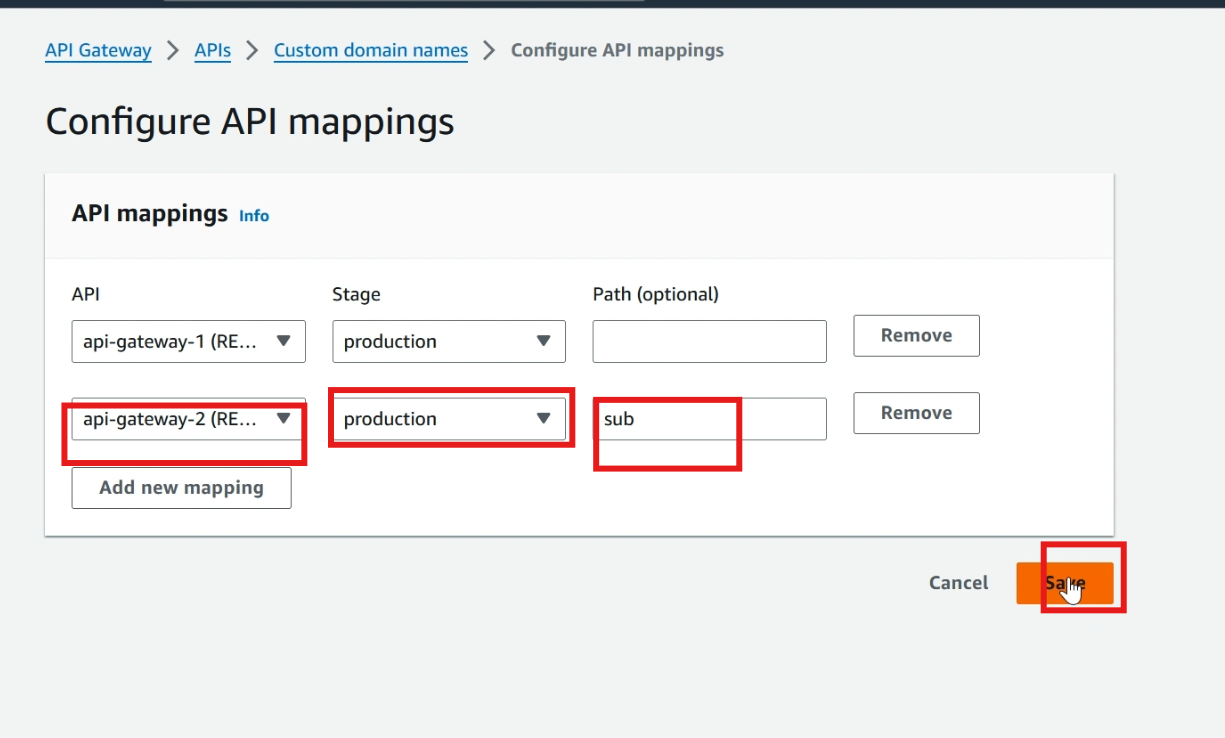

In api >> choose api gateway 2, in stage >> choose your created stage, in path >> type any name (I am giving sub), and click save

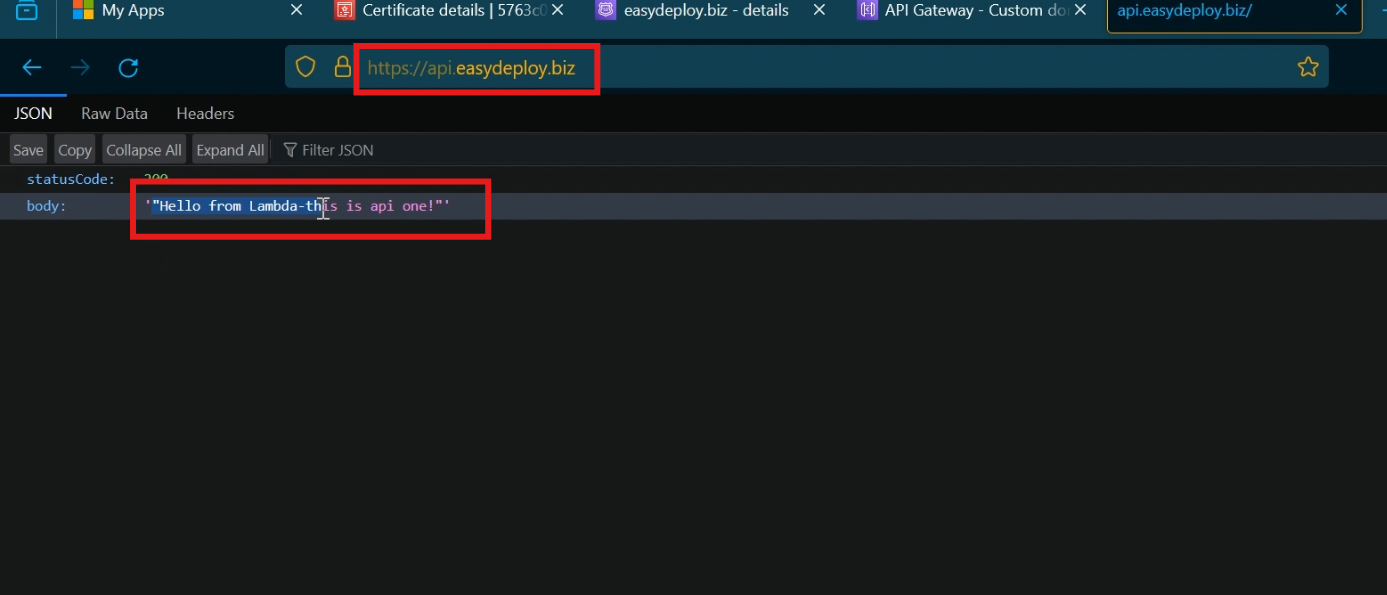

Now we successfully mapped the path, copy the domain and paste it into a new tab.

It will display the first api gateway content that we integrated into the first lambda function

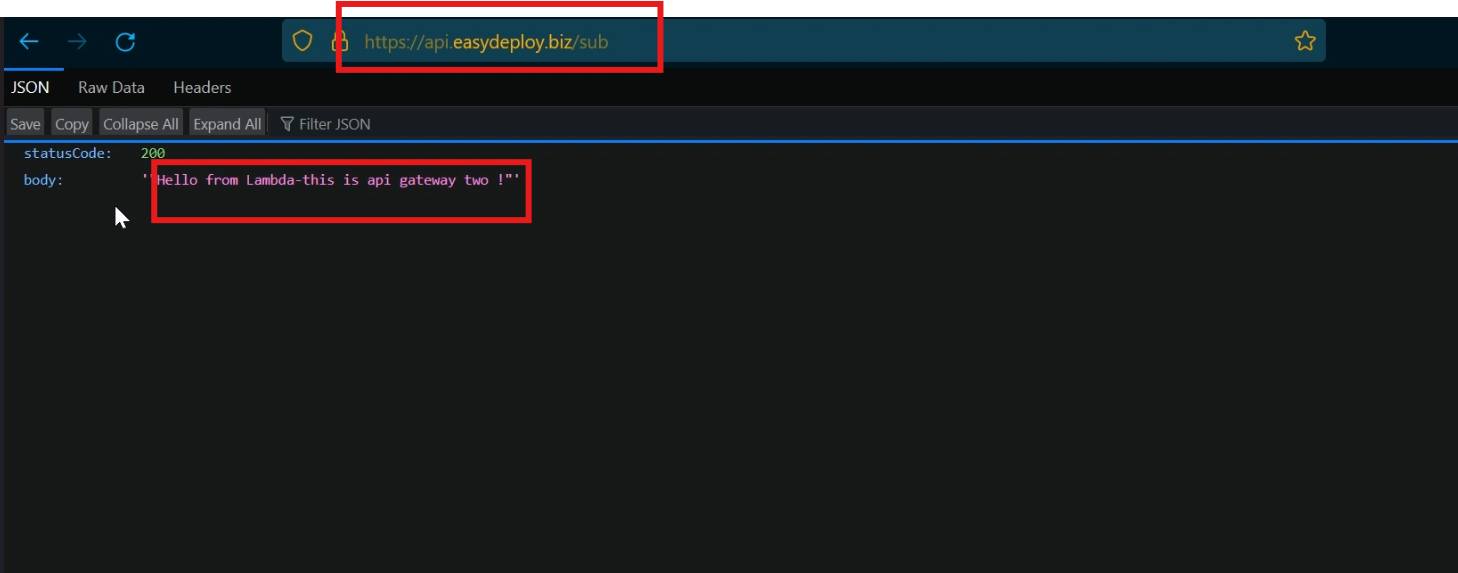

Now type “/sub” in the domain name, and it will display the second api gateway content that we integrated in the second lambda function.

routing traffic to two API gateways based on the path can be efficiently managed using path-based routing rules within your API management platform or reverse proxy.

This enhances modularity, scalability, and independent management of APIs, facilitating easier updates and maintenance, and improving overall system performance.
